Simple Ping in Swift Code
前言
iOS 平台上想使用 ping 不像安卓可以直接使用 linux 的 ping 命令，我们需要自己来实现，早先苹果给出了一个 OC 版本的 demo，并参考了网上一些 Swift 版本的实现，虽然只是个小工具，但还是涉及到了不少知识点：ICMP 报文格式、Swift 中的指针操作、底层 C 方法等，稍作整理。 前三个部分可以戳： Size, Stride, Alignment · YUI 的严肃文 Simple Ping in Swift - 预备芝士 · YUI 的严肃文 Simple Ping in Swift - ICMP 报文和 IP 报文 · YUI 的严肃文
Swift 代码实现

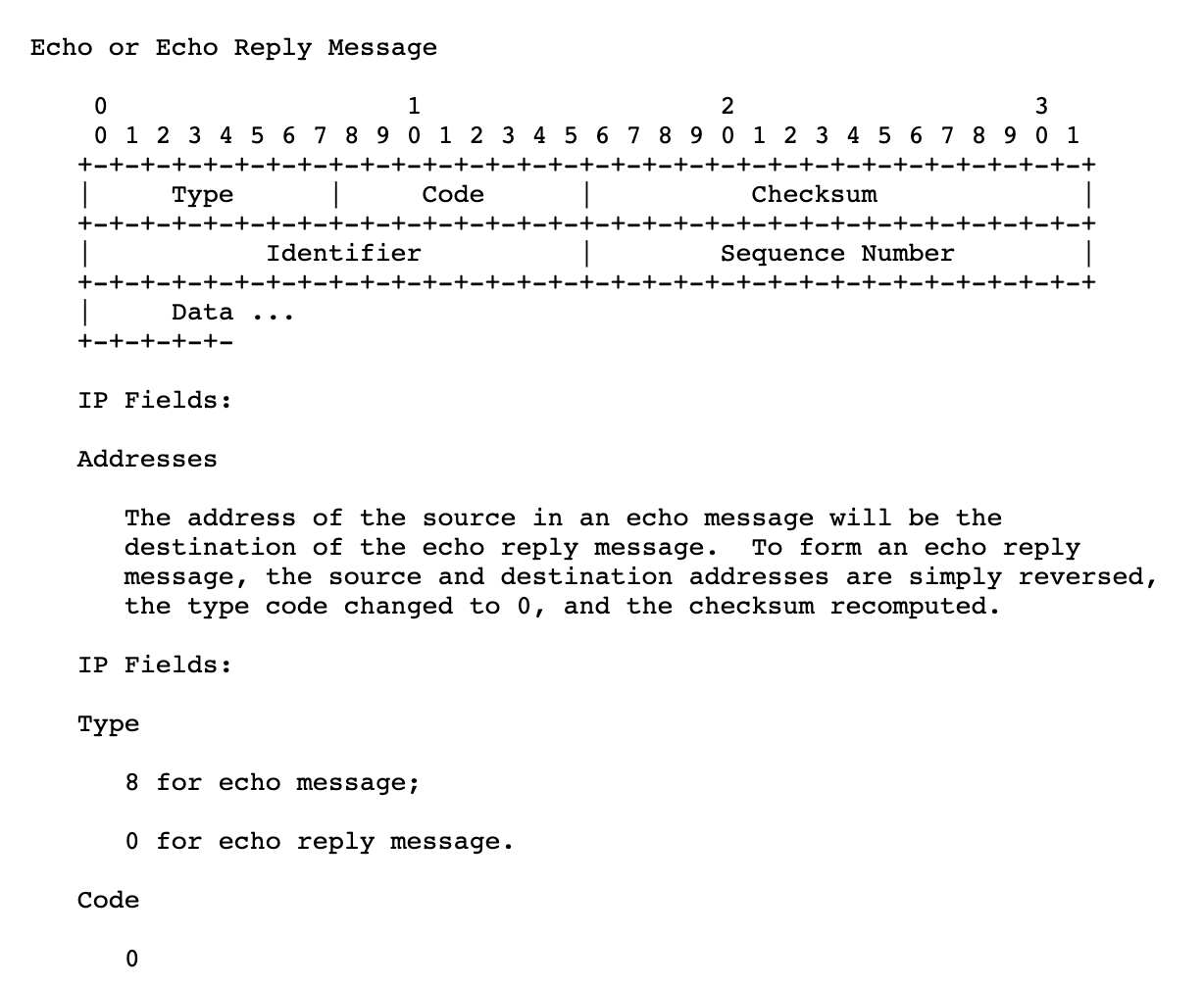

ICMP 和 IP 结构体
初始化
// 需要 ping 的域名
public let hostName: String
// 需要在开始 ping 之前指名
public var addressStyle: AddressStyle
// 用来标识一个 ping，init 的时候会赋值一个随机数
public let identifier: UInt16
public init(hostName hn: String, addressStyle s: AddressStyle = .any) {
hostName = hn
addressStyle = s
identifier = UInt16.random(in: .min ... .max)
}
初始化的时候需要调用者传递一些必要信息，并生成一个随机数作为标识符
DNS 解析
fileprivate var host: CFHost?
public private(set) var hostAddress: Data?
public func start() {
assert(host == nil)
assert(hostAddress == nil)
// 在创建 context 的时候将 self 本身作为 info 参数传递进去，在回调函数中会使用到
var context = CFHostClientContext(version: 0,
info: unsafeBitCast(self, to: UnsafeMutableRawPointer.self),
retain: nil,
release: nil,
copyDescription: nil)
// 使用现有的 hostName（非 IP） 创建一个 CFHostRef 对象
let h = CFHostCreateWithName(nil, hostName as CFString).autorelease().takeUnretainedValue()
host = h
// 提供一个上下文对象和回调函数
CFHostSetClient(h, hostResolveCallback, &context)
// 在 RunLoop 中执行具体的解析操作
CFHostScheduleWithRunLoop(h, CFRunLoopGetCurrent(), RunLoopMode.defaultRunLoopMode.rawValue as CFString)
var error = CFStreamError()
// 开始解析，把它的第二个参数设置为 .addresses 表明你想要返回一个 IP 地址
if !CFHostStartInfoResolution(h, CFHostInfoType.addresses, &error) {
didFail(hostStreamError: error)
} else {
//set a timeout behavior
setTimeoutBehaviorOfPing()
}
}
// 回调方法
private func hostResolveCallback(theHost: CFHost,
typeInfo: CFHostInfoType,
error: UnsafePointer<CFStreamError>?,
info: UnsafeMutableRawPointer?) {
/* This C routine is called by CFHost when the host resolution is complete.
* It just redirects the call to the appropriate Swift method. */
// 装换为 Swift Object
let obj = unsafeBitCast(info, to: SimplePing.self)
// 如果正确查询到结果，那么 host 此时已经被赋值，因为在 CFHostSetClient 的时候已经将 .host 作为参数传递进去了
assert(obj.host === theHost)
assert(typeInfo == CFHostInfoType.addresses)
if let error = error, error.pointee.domain != 0 {
obj.didFail(hostStreamError: error.pointee)
} else {
obj.hostResolutionDone()
}
}
// 获取到 IP 组以后我们需要解析出一个符合要求的可用的 IP
fileprivate func hostResolutionDone() {
// DarwinBoolean is the Swift mapping of the "historic" C type Boolean
var resolved = DarwinBoolean(false)
guard let h = host else {
return
}
// 函数来获取解析结果，这个函数返回一个数组，因为一个域名可能会对应多个 IP，我们只选取第一个可用的 IP 即可
let addresses = CFHostGetAddressing(h, &resolved)?.retain().autorelease()
if resolved.boolValue, let addresses = addresses?.takeUnretainedValue() as? [Data] {
resolved = false
for address in addresses {
assert(hostAddress == nil)
guard address.count >= MemoryLayout<sockaddr>.size else {
continue
}
address.withUnsafeBytes {(addrPtr: UnsafePointer<sockaddr>) in
// 根据初始化传入的 addressStyle 进行判断
switch (addrPtr.pointee.sa_family, addressStyle) {
case (sa_family_t(AF_INET), .any), (sa_family_t(AF_INET), .icmpV4):
hostAddress = address; resolved = true
case (sa_family_t(AF_INET6), .any), (sa_family_t(AF_INET6), .icmpV6):
hostAddress = address; resolved = true
default: ()
}
}
if resolved.boolValue {
break
}
}
}
stopHostResolution()
if resolved.boolValue {
assert(hostAddress != nil)
startWithHostAddress()
} else {
didFail(error: NSError(domain: kCFErrorDomainCFNetwork as String,
code: Int(CFNetworkErrors.cfHostErrorHostNotFound.rawValue),
userInfo: nil))
}
}
套接字创建
域名解析成功后，我们需要创建套接字，为后续发送包做准备
fileprivate var sock: CFSocket?
private func startWithHostAddress() {
// Type for the platform-specific native socket handle.
let fd: CFSocketNativeHandle
let err: Int32
switch hostAddressFamily {
case sa_family_t(AF_INET):
// SOCK_DGRAM 表示使用不可靠的数据报服务，不保障有序、可达
fd = socket(AF_INET, SOCK_DGRAM, IPPROTO_ICMP)
if fd < 0 {
err = errno
} else {
err = 0
}
case sa_family_t(AF_INET6):
fd = socket(AF_INET6, SOCK_DGRAM, IPPROTO_ICMPV6)
if fd < 0 {
err = errno
} else {
err = 0
}
default:
fd = -1
err = EPROTONOSUPPORT
}
guard err == 0 else {
didFail(error: NSError(domain: NSPOSIXErrorDomain, code: Int(err), userInfo: nil))
return
}
// 包装到 CFSocket 中，仍然将 self 本身作为 info 参数传递
var context = CFSocketContext(version: 0,
info: unsafeBitCast(self, to: UnsafeMutableRawPointer.self),
retain: nil,
release: nil,
copyDescription: nil)
// CFSocketCreateWithNative 会返回一个可复用的 socket
// readCallBack: The callback is called when data is available to be read or a new connection is waiting to be accepted. The data is not automatically read; the callback must read the data itself.
sock = CFSocketCreateWithNative(nil, fd, CFSocketCallBackType.readCallBack.rawValue, socketReadCallback, &context)
assert(sock != nil)
assert(CFSocketGetSocketFlags(sock) & kCFSocketCloseOnInvalidate != 0)
// 为 CFSocket 创建一个 CFRunLoopSourceRef
let rls = CFSocketCreateRunLoopSource(nil, sock, 0)
assert(rls != nil)
CFRunLoopAddSource(CFRunLoopGetCurrent(), rls, CFRunLoopMode.defaultMode)
delegate?.simplePing(self, didStart: hostAddress ?? Data())
}
发送消息
因为 ping 默认使用 UDP，是无连接的，所以发送数据的时候需要致命对方的 IP 地址 构造 ICMP 包，ICMPHeader 的定义可以查看：
func pingPacket(type: UInt8, payload: Data, requiresChecksum: Bool) -> Data {
let header = ICMPHeader(
type: type, code: 0, checksum: 0,
identifier: identifier, sequenceNumber: nextSequenceNumber
)
var packet = header.headerBytes + payload
if requiresChecksum {
/* The IP checksum routine returns a 16-bit number that's already in
* correct byte order (due to wacky 1's complement maths), so we just
* put it into the packet as a 16-bit unit. */
// IP 只针对头部进行校验，ICMP 是基于整个包来生成校验和
let checksumBig = SimplePing.packetChecksum(packetData: packet)
packet[ICMPHeader.checksumDelta...].withUnsafeMutableBytes {(bytes: UnsafeMutablePointer<UInt16>) in bytes.pointee = checksumBig }
}
return packet
}
检验和的生成：
static private func packetChecksum(packetData: Data) -> UInt16 {
var sum: Int32 = 0
var packetData = packetData
/* Mop up an odd byte, if necessary */
if packetData.count % 2 == 1 {
packetData += Data([0])
}
/* Our algorithm is simple, using a 32 bit accumulator (sum), we
* add sequential 16 bit words to it, and at the end, fold back all the
* carry bits from the top 16 bits into the lower 16 bits. */
packetData.withUnsafeBytes {(bytes: UnsafePointer<UInt16>) in
var curPos = bytes
assert(packetData.count % 2 == 0)
for i in 0 ..< packetData.count / 2 {
//跳过校验和区域，因为我们正在计算校验和
if i != ICMPHeader.checksumDelta / 2 {
// 从低位到高位，按照 16bit 为单位相加
sum &+= Int32(curPos.pointee)
}
curPos = curPos.advanced(by: 1)
}
}
/* Add back carry outs from top 16 bits to low 16 bits */
sum = (sum >> 16) &+ (sum & 0xffff) /* add high 16 to low 16 */
sum &+= (sum >> 16) /* add carry */
return UInt16(truncating: NSNumber(value: ~sum)) /* truncate to 16 bits */
}
发送包
构造好包，调用 sendto 方法来发送
public func sendPing(data: Data?) {
// 必须要等到 IP 地址解析完成才能开始 ping
guard let hostAddress = hostAddress else {
fatalError("Gotta wait for -simplePing:didStartWithAddress: before sending a ping")
}
/* Our dummy payload is sized so that the resulting ICMP packet, including
* the ICMPHeader, is 64-bytes, which makes it easier to recognise our
* packets on the wire. */
let payload = data ?? String(format: "%28zd bottles of beer on the wall", 99 - (nextSequenceNumber % 100)).data(using: .ascii)!
assert(data != nil || payload.count == 56)// 56 为 64 扣掉首部的长度
// 构造 ping packet
let packet: Data
switch hostAddressFamily {
case sa_family_t(AF_INET):
packet = pingPacket(type: ICMPv4TypeEcho.request.rawValue, payload: payload, requiresChecksum: true)
case sa_family_t(AF_INET6):
packet = pingPacket(type: ICMPv6TypeEcho.request.rawValue, payload: payload, requiresChecksum: true)
default:
fatalError()
}
// 调用 sendto 方法发送 package
let err: Int32
let bytesSent: Int
if let socket = sock {
bytesSent = packet.withUnsafeBytes {(packetBytes: UnsafePointer<UInt8>) -> Int in
return hostAddress.withUnsafeBytes {(hostAddressBytes: UnsafePointer<sockaddr>) -> Int in
return sendto(
CFSocketGetNative(socket),
UnsafeRawPointer(packetBytes),
packet.count,
0, /* flags */
hostAddressBytes, //因为是基于 UDP 发送，所以是无连接的，需要致命目的地址
socklen_t(hostAddress.count)
)
}
}
// 如果发送成功，sendto 方法会返回实际传送出去的字符长度，失败返回 -1
if bytesSent >= 0 {
err = 0
} else {
err = errno
}
} else {
bytesSent = -1
err = EBADF
}
if bytesSent > 0 && bytesSent == packet.count {
delegate?.simplePing(self, didSendPacket: packet, sequenceNumber: nextSequenceNumber)
} else {
let error = NSError(domain: NSPOSIXErrorDomain, code: Int(err != 0 ? err : ENOBUFS), userInfo: nil)
delegate?.simplePing(self, didFailToSendPacket: packet, sequenceNumber: nextSequenceNumber, error: error)
}
nextSequenceNumber &+= 1
if nextSequenceNumber == 0 {
nextSequenceNumberHasWrapped = true
}
}
接受消息
服务器返回消息后， Socket 调用 read 程序组件，将接受到响应消息存放在接受缓冲区中。 上面我们在创建套接字的时候，传入了一个 socketReadCallback 方法，并且限定了当返回类型是 CFSocketCallBackType.readCallBack 方法时回调我们的 callback 方法
Callback 方法中的逻辑很简单，进行一些判断后，调用 readData 方法：
private func socketReadCallback(s: CFSocket?,
type: CFSocketCallBackType,
address: CFData?,
data: UnsafeRawPointer?,
info: UnsafeMutableRawPointer?) {
/* This C routine is called by CFSocket when there's data waiting on our ICMP
* socket. It just redirects the call to Swift code. */
// 转为 swift object
let obj = unsafeBitCast(info, to: SimplePing.self)
assert(obj.sock === s)
assert(type == CFSocketCallBackType.readCallBack)
assert(address == nil)
assert(data == nil)
obj.readData()
}
Readata 中的逻辑就是读取 IP 包，然后摘出其中的 ICMP，剖析 ICMP 返回包，检验其正确性之后将结果返回（下一段具体讲解析 ICMP 返回包的逻辑），如果成功，将 response 的内容和序列回调给代理，如果失败，抛错误给代理； 至此，就是一次完整的 Ping Pong
fileprivate func readData() {
// 65535 is the maximum IP packet size
let bufferSize = 65535
// alloc 一片内存空间
let buffer = UnsafeMutableRawPointer.allocate(byteCount: bufferSize, alignment: 0 /* We don’t need a specific alignment AFAICT */)
defer {
buffer.deallocate()
}
// 通过 recvfrom 方法读取数据
let err: Int32
// sockaddr_storage 既可以表示 IPv4 地址，也可以表示 IPv6 地址，是足以存储 IPv6 地址的结构体
var addr = sockaddr_storage()
var addrLen = socklen_t(MemoryLayout<sockaddr_storage>.size)
let bytesRead = withUnsafeMutablePointer(to: &addr, { (addrStoragePtr: UnsafeMutablePointer<sockaddr_storage>) -> Int in
let addrPtr = UnsafeMutablePointer<sockaddr>(OpaquePointer(addrStoragePtr))
// 从指定套接字 sock 的 addrPtr 指针开始，读取长度为 addrLen 的数据到指定的 buffer 中
return recvfrom(CFSocketGetNative(sock), buffer, bufferSize, 0, addrPtr, &addrLen)
})
// 失败则返回-1，错误原因存于errno中
if bytesRead >= 0 {
err = 0
} else {
err = errno
}
if bytesRead > 0 {
var sequenceNumber = UInt16(0)
var packet = Data(bytes: buffer, count: bytesRead)
// 将 buffer 转给指向 IPv4Header 类型的指针，.pointee 实际上在取 buffer 中具体的值
let ttl = buffer.assumingMemoryBound(to: IPv4Header.self).pointee.timeToLive
// 将 packet 和 sequenceNumber 的引用传入，如果包是合法的，返回时这两个参数就已经被赋值
if validatePingResponsePacket(&packet, sequenceNumber: &sequenceNumber) {
delegate?.simplePing(self, didReceivePingResponsePacket: packet, sequenceNumber: sequenceNumber, ttl: ttl)
} else {
delegate?.simplePing(self, didReceiveUnexpectedPacket: packet)
}
} else {
didFail(error: NSError(domain: NSPOSIXErrorDomain, code: Int(err != 0 ? err : EPIPE), userInfo: nil))
}
}
解析 ICMP 返回包
分情况验证包的正确性，注意以下几次方法的参数都是 inout 的
func validatePingResponsePacket(_ packet: inout Data, sequenceNumber: inout UInt16) -> Bool {
switch hostAddressFamily {
case sa_family_t(AF_INET):
return validatePing4ResponsePacket(&packet, sequenceNumber: &sequenceNumber)
case sa_family_t(AF_INET6):
return validatePing6ResponsePacket(&packet, sequenceNumber: &sequenceNumber)
default:
fatalError()
}
}
下面只贴 IPv4 的验证逻辑，思路是一样的，只是 type 类型不一样
private func validatePing4ResponsePacket(_ packet: inout Data, sequenceNumber: inout UInt16) -> Bool {
guard let icmpHeaderOffset = SimplePing.icmpHeaderOffset(in: packet) else {
return false
}
let icmpPacket = Data(packet[icmpHeaderOffset...])
// 传入 data 生成 ICMPHeader 结构体
let icmpHeader = ICMPHeader(data: icmpPacket)
let receivedChecksum = icmpHeader.checksum
// 验证校验和
let calculatedChecksum = UInt16(bigEndian: SimplePing.packetChecksum(packetData: icmpPacket))
/* The checksum method returns a big-endian UInt16 */
// 检验和不对，不合法
guard receivedChecksum == calculatedChecksum else {
return false
}
// 类型不是 0，代码不为 0，不合法，IPv4 的 ping 请求的 reply 对应的类型字段为 0， 代码字段为 0，下面实际贴了一张 ICMP 的 RFC 中的图
guard icmpHeader.type == ICMPv4TypeEcho.reply.rawValue && icmpHeader.code == 0 else {
return false
}
// 之前我们生成的 id，用于匹配包，不匹配则不合法
guard icmpHeader.identifier == identifier else {
return false
}
guard validateSequenceNumber(icmpHeader.sequenceNumber) else {
return false
}
//
packet = icmpPacket
sequenceNumber = icmpHeader.sequenceNumber
return true
}
IPv4 的 ping 请求的 reply 对应的类型字段为 0， 代码字段为 0：
// ICMP 包的偏移位置
static private func icmpHeaderOffset(in ipv4Packet: Data) -> Int? {
guard ipv4Packet.count >= IPv4Header.size + ICMPHeader.size else {
return nil
}
// 通过 data 生成 IPv4 结构体
let ipv4Header = IPv4Header(data: ipv4Packet)
if ipv4Header.versionAndHeaderLength & 0xF0 == 0x40 /* IPv4 */ && Int32(ipv4Header.protocol) == IPPROTO_ICMP {
// 取出第 1 个字节，与 0x0F 是为了取其中的后 4 位，因为首部长度字段只有 4 位
let ipHeaderLength = Int(ipv4Header.versionAndHeaderLength & 0x0F) * MemoryLayout<UInt32>.size
if ipv4Packet.count >= (ipHeaderLength + ICMPHeader.size) {
return ipHeaderLength
}
}
return nil
}
