Simple Ping in Swift - ICMP 报文和 IP 报文

October 25, 2019

引言

ICMP 是 IP 层协议，是为了提高 IP 数据交付成功率而使用的一种协议，是因特网标准协议（RFC 792） ICMP 报文是作为 IP 层数据报的数据，加上 IP 数据报的首部，组成数据报发送出去，ICMP 是使用了 IP 协议的一种配套使用型协议

ICMP

报文类型

ICMP 报文分为两大类：ICMP 差错报告报文、ICMP 询问报文

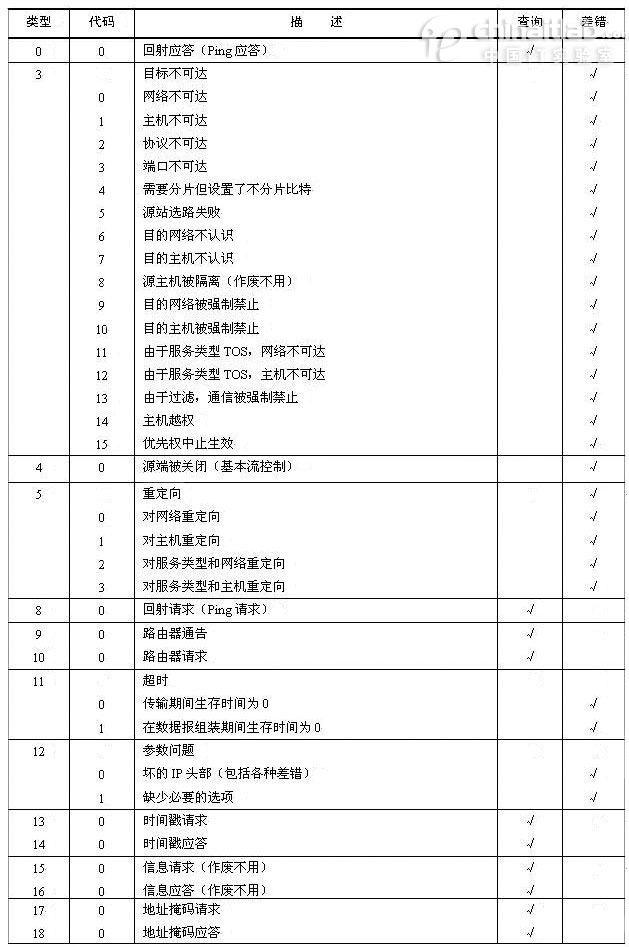

不同细分类型由报文中的::类型::字段和::代码::字段来共同决定具体细分类型如下：

格式

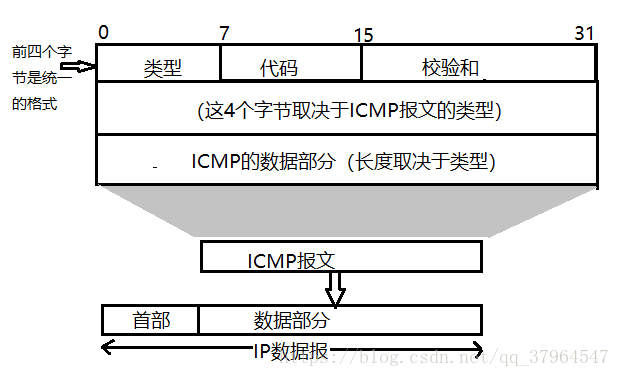

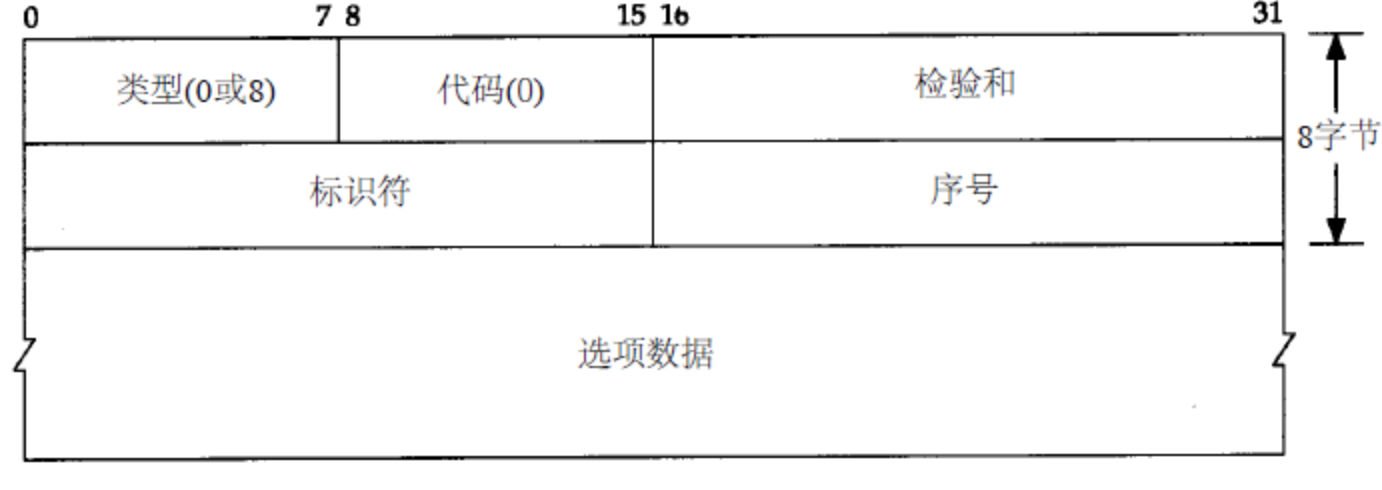

一般格式： -w250 在 ping 的时候，使用的是 ICMP 回送请求或回答类型报文，对应的类型字段是 8 或者 0，对应的代码是 0 -w250

代码

关于 Swift 的内存操作可以戳：Simple Ping in Swift - 预备芝士 · YUI 的严肃文

定义一个 struct 用于表示 ICMP Header

各个字段的定义

public struct ICMPHeader {

  public static let size = 8
  public static let checksumDelta = 2

  // 类型
  public var type: UInt8 {
      didSet {
          headerBytes[0] = type
      }
  }
  // 代码
  public var code: UInt8 {
      didSet {
          headerBytes[1] = code
      }
  }
  // 校验和
  public var checksum: UInt16 {
      didSet {
          headerBytes[2...].withUnsafeMutableBytes {(bytes: UnsafeMutablePointer<UInt16>) in
              bytes.pointee = checksum.bigEndian
          }
      }
  }
  // 标识符
  public var identifier: UInt16 {
      didSet {
          headerBytes[4...].withUnsafeMutableBytes {(bytes: UnsafeMutablePointer<UInt16>) in
              bytes.pointee = identifier.bigEndian
          }
      }
  }
  // 序号
  public var sequenceNumber: UInt16 {
      didSet {
          headerBytes[6...].withUnsafeMutableBytes {(bytes: UnsafeMutablePointer<UInt16>) in
              bytes.pointee = sequenceNumber.bigEndian
          }
      }
  }

  public private(set) var headerBytes: Data
}

初始化方法：通过传入具体字段来生成 ICMP

// 通过传入具体字段来生成 ICMP
  public init(type t: UInt8, code c: UInt8, checksum chk: UInt16, identifier i: UInt16, sequenceNumber n: UInt16) {
      type = t
      code = c
      checksum = chk
      identifier = i
      sequenceNumber = n

      headerBytes = Data(count: ICMPHeader.size)
      // 使用指定的 UInt8 数据类型指针来访问 headerBytes 数据段
      headerBytes.withUnsafeMutableBytes {(bytes: UnsafeMutablePointer<UInt8>) in
          var curPosUInt8 = bytes
          curPosUInt8.pointee = type;
          curPosUInt8 = curPosUInt8.advanced(by: 1)

          curPosUInt8.pointee = code;
          curPosUInt8 = curPosUInt8.advanced(by: 1)

          var curPosUInt16 = UnsafeMutablePointer<UInt16>(OpaquePointer(curPosUInt8))
          curPosUInt16.pointee = checksum.bigEndian
          curPosUInt16 = curPosUInt16.advanced(by: 1)

          curPosUInt16.pointee = identifier.bigEndian
          curPosUInt16 = curPosUInt16.advanced(by: 1)

          curPosUInt16.pointee = sequenceNumber.bigEndian
          curPosUInt16 = curPosUInt16.advanced(by: 1)
      }
  }

初始化方法：通过传入的 data 来具体赋值各个字段

// 通过传入的 data 来具体赋值各个字段
  public init(data: Data) {
      assert(data.count >= ICMPHeader.size)

      var typeI: UInt8 = 0
      var codeI: UInt8 = 0
      var checksumI: UInt16 = 0
      var identifierI: UInt16 = 0
      var sequenceNumberI: UInt16 = 0
      data.withUnsafeBytes {(bytes: UnsafePointer<UInt8>) in
          var curPosUInt8 = bytes
          typeI = curPosUInt8.pointee;
          curPosUInt8 = curPosUInt8.advanced(by: 1)

          codeI = curPosUInt8.pointee;
          curPosUInt8 = curPosUInt8.advanced(by: 1)

          /* Note: UInt16(bigEndian:) <=> CFSwapInt16BigToHost() */
          var curPosUInt16 = UnsafePointer<UInt16>(OpaquePointer(curPosUInt8))
          // 按照 curPosUInt16.pointee 在存储器中存取的字节顺序来生成一个 UInt16 类型值
          checksumI = UInt16(bigEndian: curPosUInt16.pointee)
          curPosUInt16 = curPosUInt16.advanced(by: 1)

          identifierI = UInt16(bigEndian: curPosUInt16.pointee)
          curPosUInt16 = curPosUInt16.advanced(by: 1)

          sequenceNumberI = UInt16(bigEndian: curPosUInt16.pointee)
          curPosUInt16 = curPosUInt16.advanced(by: 1)
      }

      type = typeI
      code = codeI
      checksum = checksumI
      identifier = identifierI
      sequenceNumber = sequenceNumberI

      headerBytes = Data(data[..<ICMPHeader.size])
  }

IP

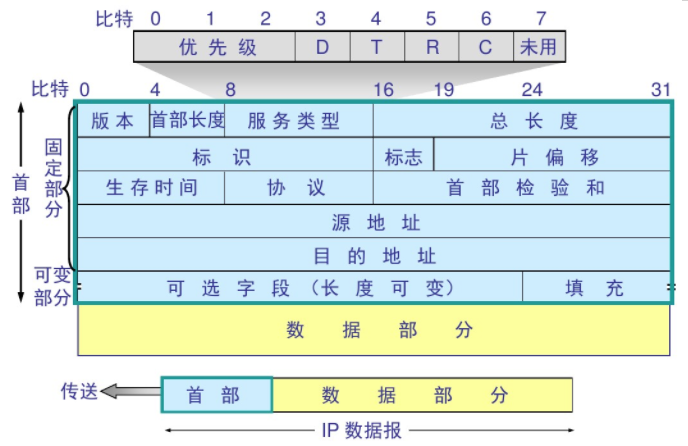

数据报格式

-w250

代码

定义一个 struct 用来表示 IP 头部 4 字节地址

// IP 头部 4 字节地址
  struct Address {
      let byte1: UInt8
      let byte2: UInt8
      let byte3: UInt8
      let byte4: UInt8

      init() {
          byte1 = 0
          byte2 = 0
          byte3 = 0
          byte4 = 0
      }

      init(dataPointer: inout UnsafePointer<UInt8>) {
          // 逐字节赋值
          byte1 = dataPointer.pointee; dataPointer = dataPointer.advanced(by: 1)
          byte2 = dataPointer.pointee; dataPointer = dataPointer.advanced(by: 1)
          byte3 = dataPointer.pointee; dataPointer = dataPointer.advanced(by: 1)
          byte4 = dataPointer.pointee; dataPointer = dataPointer.advanced(by: 1)
      }
  }

IP 数据报头部 struct

struct IPv4Header {
  static let size = 20

  // 版本（IPv4 or IPv6） + 首部长度
  let versionAndHeaderLength: UInt8
  // 服务类型，更低的延迟 or 更高的吞吐 or 更高的可靠性 or 代价更小的路由等等
  let differentiatedServices: UInt8
  // 总长度，首部和数据之和的长度，单位为字节
  let totalLength: UInt16
  // 标识，不是序号的意思，是为了分片后重装数据报
  let identification: UInt16
  // 标志 + 片偏移，都是分片相关参数
  let flagsAndFragmentOffset: UInt16
  // 生存时间，数据报在网络中可通过的路由器数的最大值
  let timeToLive: UInt8
  // 协议，数据报携带的z数据使用的是何种h协议
  let `protocol`: UInt8
  // 首部校验和
  let headerChecksum: UInt16
  // 原地址
  let sourceAddress: Address
  // 目的地址
  let destinationAddress: Address
  /* options... */
  /* data... */

  init(data: Data) {
      assert(data.count >= IPv4Header.size)

      var versionAndHeaderLengthI: UInt8 = 0
      var differentiatedServicesI: UInt8 = 0
      var totalLengthI: UInt16 = 0
      var identificationI: UInt16 = 0
      var flagsAndFragmentOffsetI: UInt16 = 0
      var timeToLiveI: UInt8 = 0
      var protocolI: UInt8 = 0
      var headerChecksumI: UInt16 = 0
      var sourceAddressI = Address()
      var destinationAddressI = Address()
      data.withUnsafeBytes { (bytes: UnsafePointer<UInt8>) in
          var curPosUInt8 = bytes
          versionAndHeaderLengthI = curPosUInt8.pointee
          curPosUInt8 = curPosUInt8.advanced(by: 1)

          differentiatedServicesI = curPosUInt8.pointee
          curPosUInt8 = curPosUInt8.advanced(by: 1)

          var curPosUInt16 = UnsafePointer<UInt16>(OpaquePointer(curPosUInt8))
          totalLengthI = curPosUInt16.pointee
          curPosUInt16 = curPosUInt16.advanced(by: 1)

          identificationI = curPosUInt16.pointee
          curPosUInt16 = curPosUInt16.advanced(by: 1)

          flagsAndFragmentOffsetI = curPosUInt16.pointee
          curPosUInt16 = curPosUInt16.advanced(by: 1)

          curPosUInt8 = UnsafePointer<UInt8>(OpaquePointer(curPosUInt16))
          timeToLiveI = curPosUInt8.pointee
          curPosUInt8 = curPosUInt8.advanced(by: 1)

          protocolI = curPosUInt8.pointee
          curPosUInt8 = curPosUInt8.advanced(by: 1)

          curPosUInt16 = UnsafePointer<UInt16>(OpaquePointer(curPosUInt8))
          headerChecksumI = curPosUInt16.pointee
          curPosUInt16 = curPosUInt16.advanced(by: 1)

          curPosUInt8 = UnsafePointer<UInt8>(OpaquePointer(curPosUInt16))
          sourceAddressI = Address(dataPointer: &curPosUInt8)
          destinationAddressI = Address(dataPointer: &curPosUInt8)
      }

      versionAndHeaderLength = versionAndHeaderLengthI
      differentiatedServices = differentiatedServicesI
      totalLength = totalLengthI
      identification = identificationI
      flagsAndFragmentOffset = flagsAndFragmentOffsetI
      timeToLive = timeToLiveI
      `protocol` = protocolI
      headerChecksum = headerChecksumI
      sourceAddress = sourceAddressI
      destinationAddress = destinationAddressI
  }
}

IP 包 + ICMP包

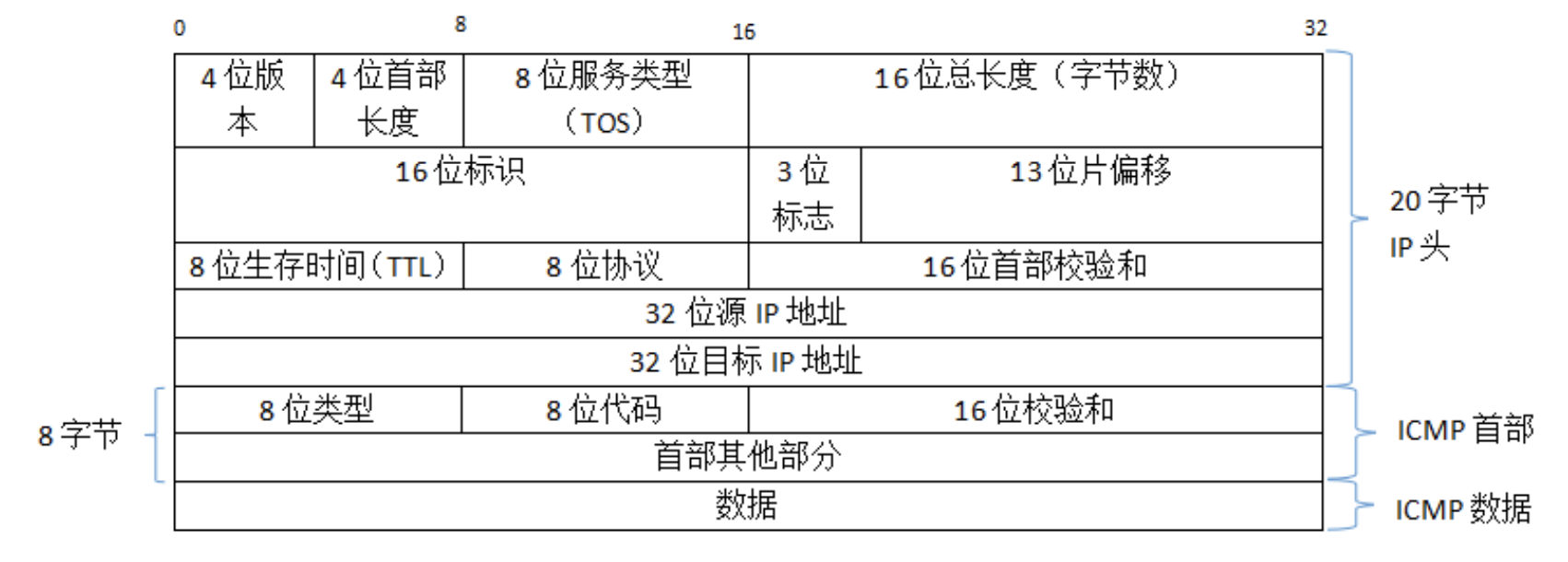

将上面两个部分结合： IP 首部 (20 字节) + 8 位类型 + 8 位代码 + 16 位校验和 + ICMP 首部其他部分 (7 字节) + 数据 -w250
